Overview

Tactility is an operating system that is focusing on the ESP32 microcontroller.



Status: Alpha

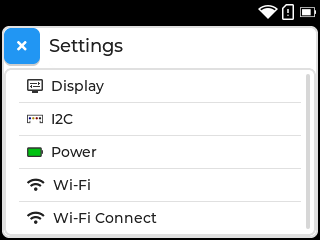

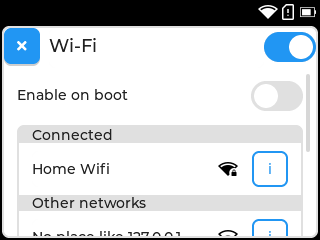

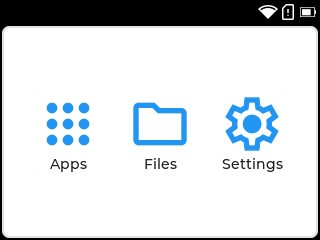

Next to desktop functionality, Tactility makes it easy to manage system settings:

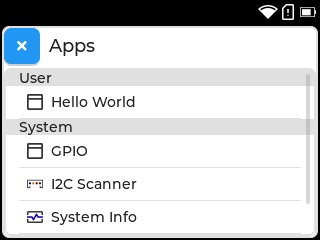

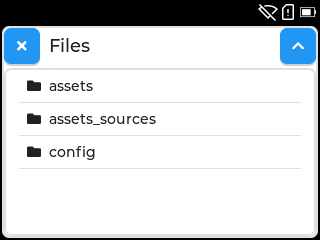

There are also built-in apps:

Play with the built-in apps or build your own! Use one of the supported devices or set up the drivers for your own hardware platform.

Noteworthy features:

• Touch UI capabilities (via LVGL) with support for input devices such as keyboard, trackable and more.
• Run apps and services.
• Run external apps from SD card. (limited APIs available, for now)
• Basic applications to boost productivity, such as a Wi-Fi connectivity and I2C.
• Includes a PC simulator build target to speed up development.

Requirements:

• ESP32 (any?)
• esp-idf 5.3 or a newer v5.3.x
• (for PC simulator) SDL2 library, including SDL image

Making apps is easy!

The app manifest provides basic information like the application name. It also describes the app lifecycle: It tells Tactility which functions need to be called when the app is started/shown/etc.

UI is created with lvgl which has lots of widgets! Creating a touch-capable UI is easy and doesn't require your own render loop!

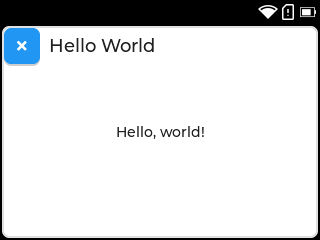

static void onShow(tt::app::AppContext context, lv_obj_t* parent) {
    // Default toolbar with app name and close button
    lv_obj_t* toolbar = tt::lvgl::toolbar_create(parent, context);
    lv_obj_align(toolbar, LV_ALIGN_TOP_MID, 0, 0);

    // Label widget
    lv_obj_t* label = lv_label_create(parent);
    lv_label_set_text(label, "Hello, world!");
    lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
    // Widgets are auto-removed from the parent when the app is closed
}

extern const tt::app::AppManifest manifest = {
    .id = "HelloWorld",    // Used to identify and start an app
    .name = "Hello World", // Shown on the desktop and app's toolbar
    .onShow = onShow  // A minimal setup sets the onShow() function
};

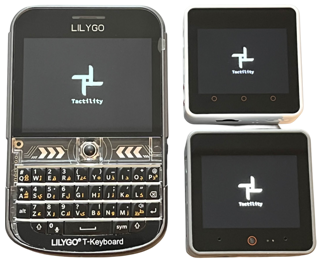

Supported Hardware

Any ESP32 device with a touchscreen should be able to run Tactility, because LVGL is set up in a platform-agnostic manner. Implementing drivers can take some effort, so Tactility provides support for several devices.

Predefined configurations are available for:

Device	Screen&Touch	SD card	Power	Other
LilyGo T-Deck Plus	✅	✅	⏳	Keyboard
LilyGo T-Deck	✅	✅		Keyboard
M5Stack Core2	✅	✅	✅
M5Stack CoreS3	✅	✅	✅
Yellow Board 2432S024C (*)	✅	✅

• ✅: Capable and implemented
• ⏳: Capable but not yet implemented
• ❌: Not capable

(*) Note: Only the capacitive version is supported. See AliExpress here and here.

Guide

Cloning from git

Ensure you clone the repository including the submodules! For example:

git clone --recurse-submodules -j8 https://github.com/ByteWelder/Tactility.git

Build environment setup

Ensure you have esp-idf 5.3 installed, then select the correct device:

Copy the sdkconfig.board.YOUR_BOARD into sdkconfig. Use sdkconfig.defaults if you are setting up a custom board.

Building firmware

You can run idf.py flash monitor, but there are some helpers available too:

./build.sh - build the ESP-IDF or the PC version of Tactility (*) ./build.sh -p /dev/ttyACM0 - optional: you can pass on extra parameters for esp-idf builds ./run.sh - Does flash and monitor for ESP-IDF and simply builds and starts it for PC

The build scripts will detect if ESP-IDF is available. They will adapter if you ran ${IDF_PATH}/export.sh.

Development

Take a look at the App Lifecycle or the dependency diagram (this uses PlantUML).

Directories explained:

• App: The application/firmware example project
• Boards: Contains board configuration projects with drivers (and simulator)
• Tactility: The main application platform code
• TactilityC: C wrappers for making side-loaded apps (C++ is not supported yet)
• TactilityHeadless: Service framework and default services.
• TactilityCore: Core functionality regarding threads, stdlib, etc.
• Libraries: Contains a mix of regular libraries and ESP modules

Until there is proper documentation, here are some pointers:

License

GNU General Public License Version 3
