Overview

Tactility is a front-end application platform for ESP32. It is currently intended for touchscreen devices, but the goal is to also support different types of input in the future. Tactility provides an application framework that borrows concepts from Flipper Zero and mobile phone operating systems.



Status: Alpha

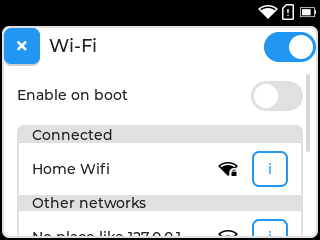

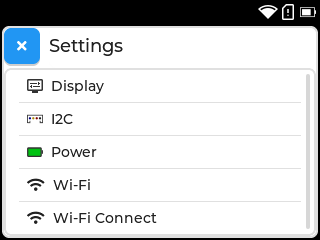

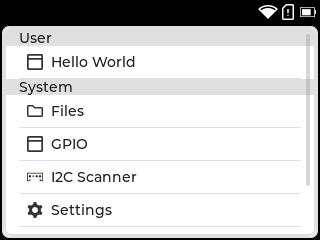

Next to desktop functionality, Tactility makes it easy to manage system settings:

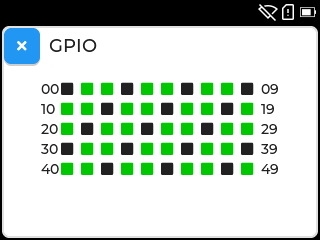

There are also built-in apps:

Play with the built-in apps or build your own! Use one of the supported devices or set up the drivers for your own hardware platform.

Noteworthy features:

• Touch UI capabilities (via LVGL) with support for input devices such as keyboard, trackable and more.
• Run apps and services.
• Run external apps from SD card. (limited APIs available, for now)
• Basic applications to boost productivity, such as a Wi-Fi connectivity and I2C.
• Includes a PC simulator build target to speed up development.

Requirements:

• ESP32 (any?) with a touchscreen
• esp-idf 5.3 or a newer v5.3.x

Making apps is easy!

The app manifest provides basic information like the application name. It also describes the app lifecycle: It tells Tactility which functions need to be called when the app is started/shown/etc.

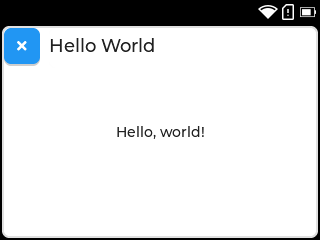

UI is created with lvgl which has lots of widgets! Creating a touch-capable UI is easy and doesn't require your own render loop!

static void onShow(tt::app::AppContext context, lv_obj_t* parent) {
    // Default toolbar with app name and close button
    lv_obj_t* toolbar = tt::lvgl::toolbar_create(parent, context);
    lv_obj_align(toolbar, LV_ALIGN_TOP_MID, 0, 0);

    // Label widget
    lv_obj_t* label = lv_label_create(parent);
    lv_label_set_text(label, "Hello, world!");
    lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
    // Widgets are auto-removed from the parent when the app is closed
}

extern const tt::app::AppManifest manifest = {
    .id = "HelloWorld",    // Used to identify and start an app
    .name = "Hello World", // Shown on the desktop and app's toolbar
    .onShow = onShow  // A minimal setup sets the onShow() function
};

Supported Hardware

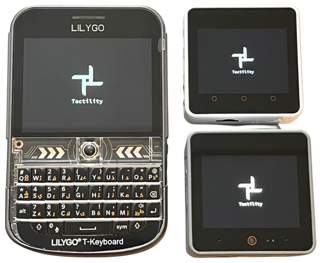

Any ESP32 device with a touchscreen should be able to run Tactility, because LVGL is set up in a platform-agnostic manner. Implementing drivers can take some effort, so Tactility provides support for several devices.

Predefined configurations are available for:

Device	Screen&Touch	SD card	Power	Other
LilyGo T-Deck Plus	✅	✅	⏳	Keyboard
LilyGo T-Deck	✅	✅		Keyboard
M5Stack Core2	✅	✅	✅
M5Stack CoreS3	✅	✅	✅
Yellow Board 2432S024C (*)	✅	✅

• ✅: Capable and implemented
• ⏳: Capable but not yet implemented
• ❌: Not capable

(*) Note: Only the capacitive version is supported. See AliExpress here and here.

Guide

Cloning from git

Ensure you clone the repository including the submodules! For example:

git clone --recurse-submodules -j8 https://github.com/ByteWelder/Tactility.git

Build environment setup

Ensure you have esp-idf 5.3 installed, then select the correct device:

Copy the sdkconfig.board.YOUR_BOARD into sdkconfig. Use sdkconfig.defaults if you are setting up a custom board.

Building firmware

You can run idf.py flash monitor, but there are some helpers available too:

./build.sh - build the ESP-IDF or the PC version of Tactility (*) ./build.sh -p /dev/ttyACM0 - optional: you can pass on extra parameters for esp-idf builds ./run.sh - Does flash and monitor for ESP-IDF and simply builds and starts it for PC

The build scripts will detect if ESP-IDF is available. They will adapter if you ran ${IDF_PATH}/export.sh.

Development

Take a look at the App Lifecycle or the dependency diagram (this uses PlantUML).

Directories explained:

• App: The application/firmware example project
• Boards: Contains board configuration projects with drivers (and simulator)
• Tactility: The main application platform code
• TactilityC: C wrappers for making side-loaded apps (C++ is not supported yet)
• TactilityHeadless: Service framework and default services.
• TactilityCore: Core functionality regarding threads, stdlib, etc.
• Libraries: Contains a mix of regular libraries and ESP modules

Until there is proper documentation, here are some pointers:

License

GNU General Public License Version 3
